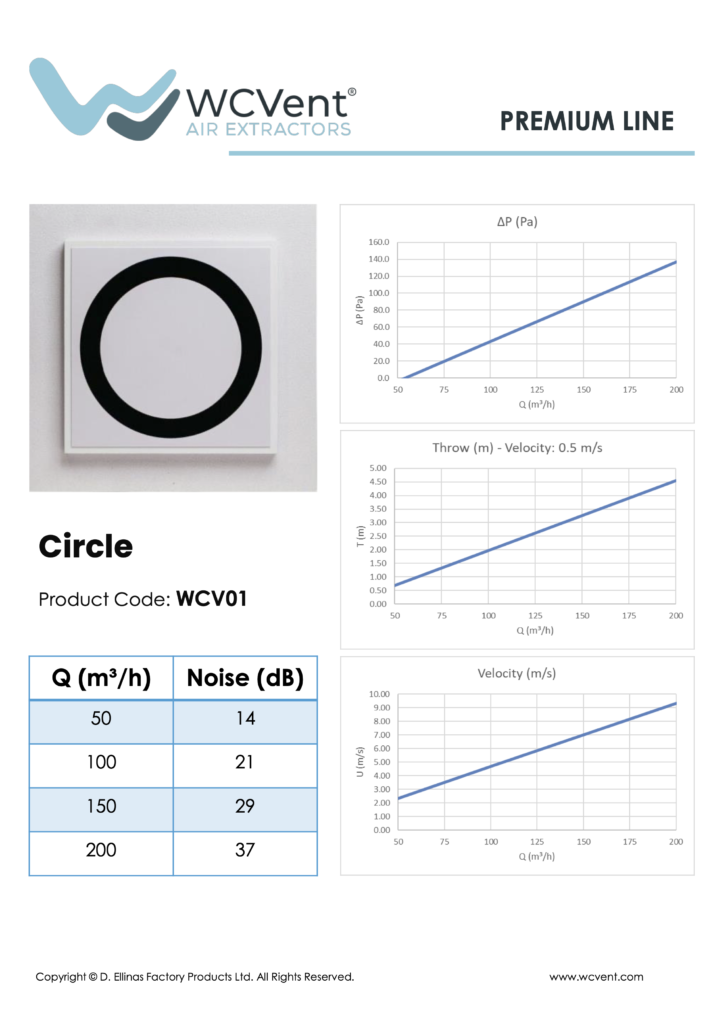

TECHNICAL
SPECIFICATIONS
(Circle)

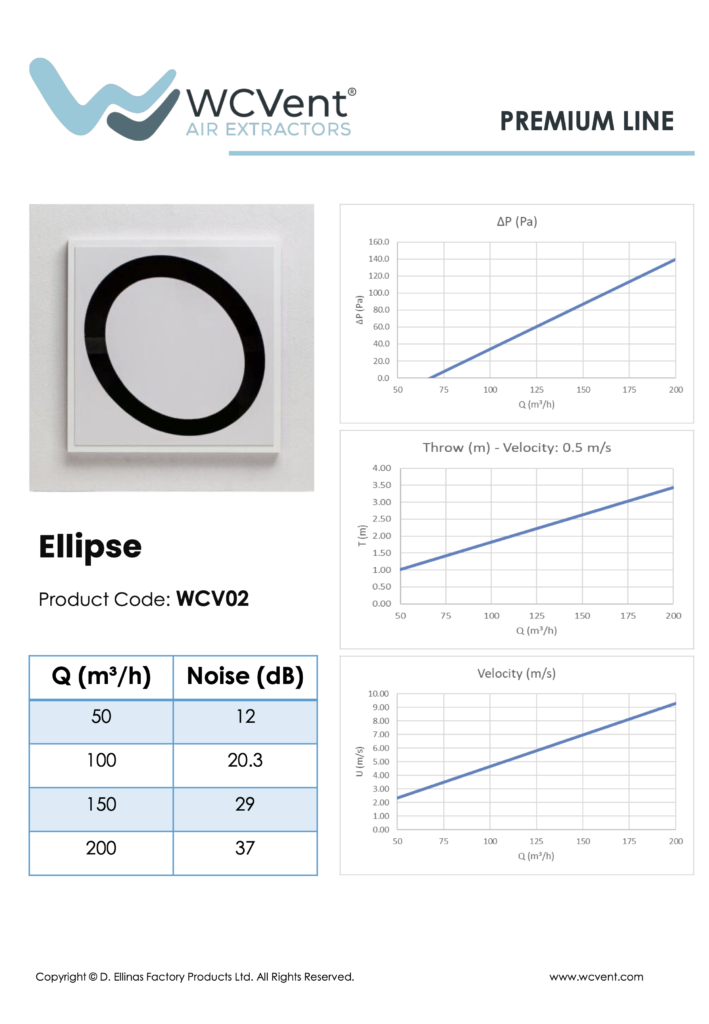

TECHNICAL
SPECIFICATIONS
(Ellipse)
TECHNICAL
SPECIFICATIONS
(Square)
TECHNICAL
SPECIFICATIONS
(Line)

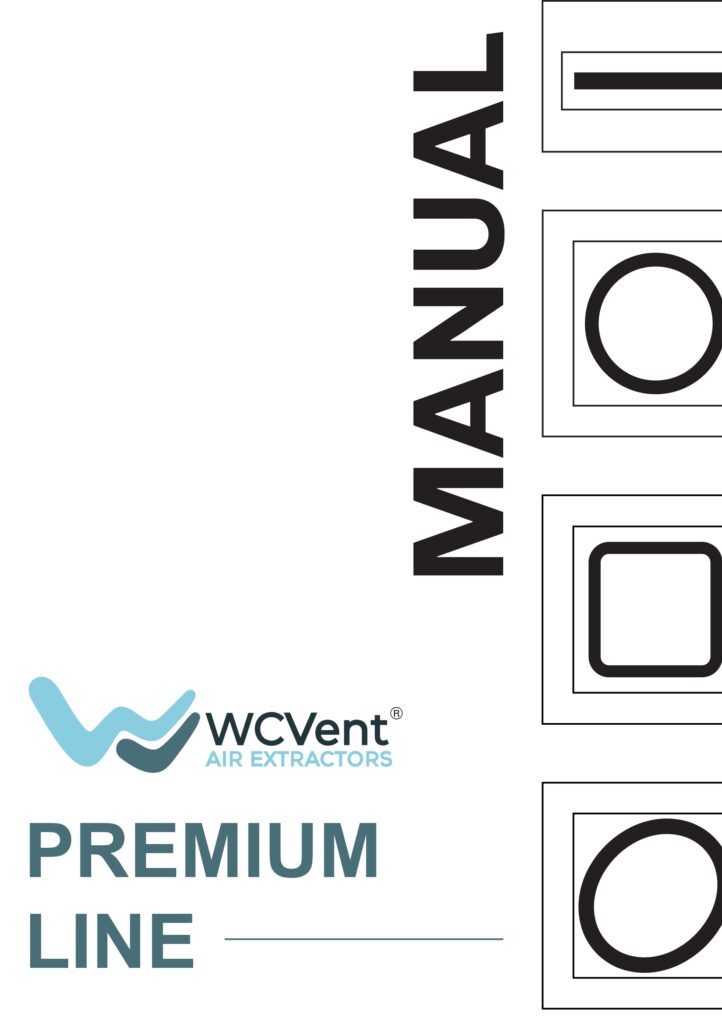

MANUAL
Premium Line

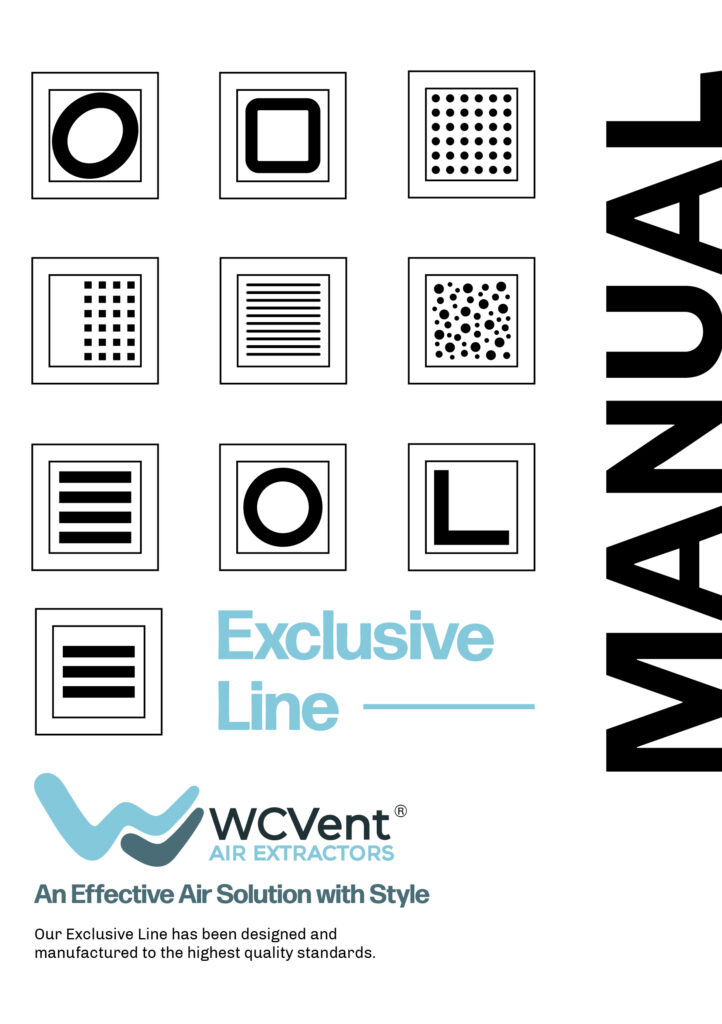

MANUAL
Exclusive Line

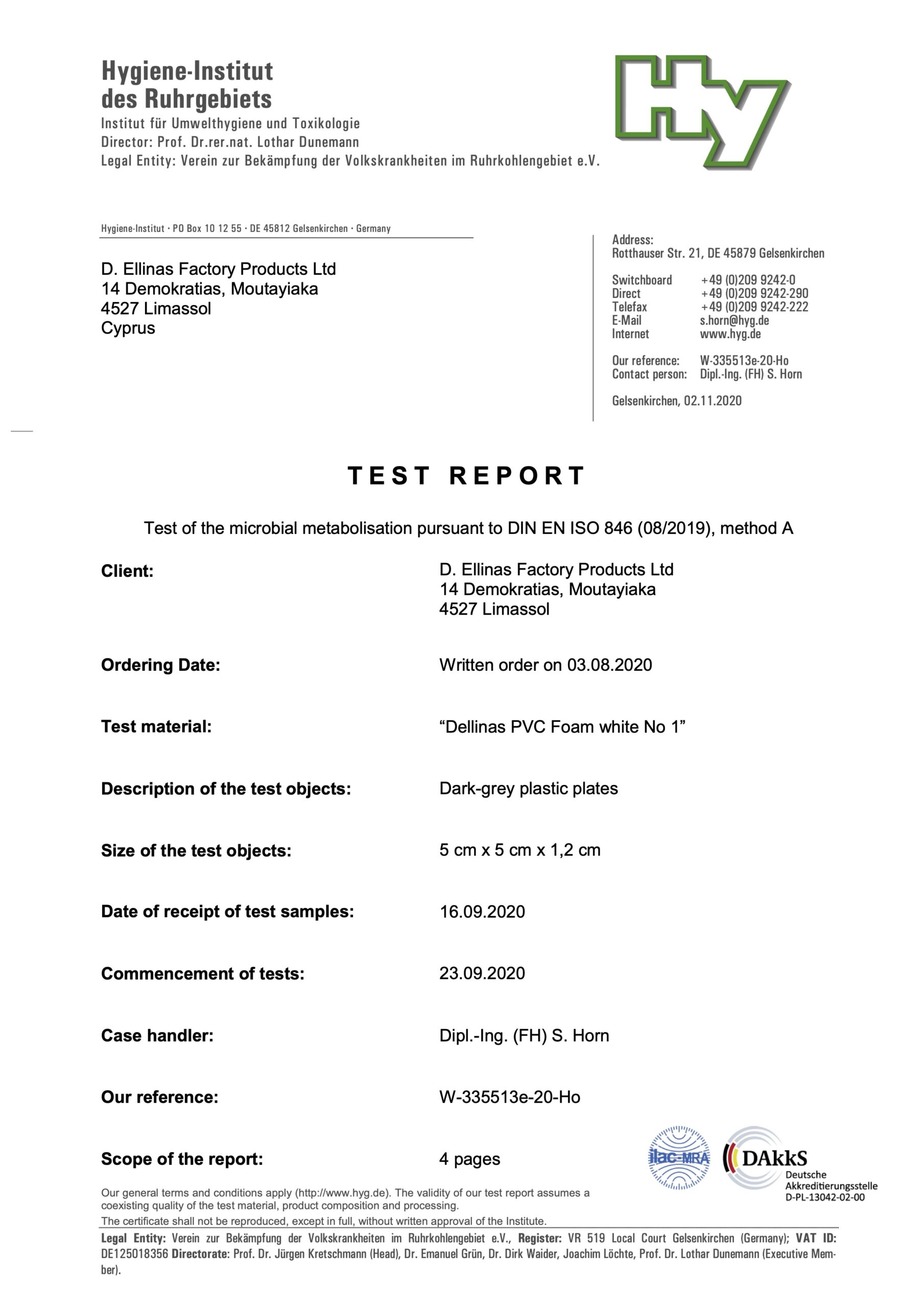

HYGIENE REPORT
ADVANTAGES
Advanced Composite Material
Condensation
Insulation
Easy Processing
Our products have insulating properties, helping to reduce heat and cooling loss, and providing a solution against condensation.
Excellent insulating properties, helping to prevent heat and cooling loss. Durability: Resistant to moisture, mold, fungi, and bacteria. Our products are ideal for use in wet, interior and exterior conditions.
Our products can be easily cut, drilled, integrated, and shaped with simple hand tools, making them ideal for DIY and customized applications.
Lightweight
Low Cost
Recyclable
Our material is significantly lighter than metal or gypsum materials, making it easier to transport and install.
Our air grille systems have integrated plenum box and are ready to be installed compared to metal grilles, making them an affordable option for the projects.
Our products contain recyclable material, contributing to the reduction of environmental impact. Choosing our products can significantly help in achieving points for LEED, BREEAM, and GSAS certification, which are important certifications for the projects nowadays.
Standard or Fire-Proof Panels?
The default panels we use for the manufacturing of our systems, are the “Regular Panels”. If your project requires “Fire-Proof Panels”, then please make sure you request that at the beginning of your order procedure.
| PROPERTY | TEST METHOD | UNITS | REGULAR PANELS | FIRE-PROOF PANELS |
|---|---|---|---|---|
| Density | DIN 53479 | g/cmᶟ | 0.55 | 0.55 |
| Hardness | DIN 53505 | Shore ‘D’ | ≥ 42 | ≥ 42 |
| Water Absorption | DIN 53495 | % | ≤ 1.0 | ≤ 1.0 |
| Tensile strength* | DIN 53455 | MPa | ≥ 15 | ≥ 15 |
| Elongation at break** | DIN 53455 | % | ≥ 15 | ≥ 15 |
| Modulus of elasticity | DIN 53457 | MPa | 900 – 1500 | 900 – 1500 |
| Impact strength Izod | ASTM D 256 | KJ/m² | ≥ 9.0 | ≥ 9.0 |
| Impact strength Charpy | DIN 53253 | KJ/m² | ≥ 15 | ≥ 15 |
| Flexural strength | DIN 53452 | MPa | > 32 | > 32 |
| Compressive Strength at 10% Deformation | DIN 53421 | MPa | > 6.5 | > 6.5 |
| Surface resistivity | ASTM D 257 | Ω | > 1 x 1014 | > 1 x 1014 |
| Volume resistivity | ASTM D 257 | Ω-cm | > 1 x 1015 | > 1 x 1015 |
| Dielectric Constant at 1 MHZ | ASTM D 150 | F/m | 1.56 | 1.56 |
| Dielectric strength | DIN 53481 | KV/cm | ≥ 90 | ≥ 90 |
| Vicat softening temperature | DIN 53460 | °C | ≥ 73 | ≥ 73 |
| Heat Deflection temperature @ 1.8 MPa | DIN 53461 | °C | 58 | 58 |
| Coefficient of Linear Expansion | DIN 53752 | mm/m °C | 0.08 | 0.08 |
| Thermal conductivity | DIN 52616 | W/m K | 0.05 | 0.05 |
| Smoke Production | EN 13501-1 | FIGRA 0,2 (W/s) FIGRA 0,4 (W/s) | Class B | Class B |
| EN 13501-1 | SMOGRA (m²/s) | CLASS s2 | CLASS s1 | |
| Flaming Droplets | EN 13823 | pc | CLASS d0 | CLASS d0 |
